If you’re in the driveline business, customers often ask about drive shafts. Knowing the parts of a drive shaft and their functions not only builds your authority but also helps you explain repairs and services more clearly.
The main parts of a drive shaft include the shaft tube, universal joints (U-joints), slip yoke, differential pinion yoke, center bearing, and constant velocity (CV) joints. Each component has a constant position and specific function, working together to connect the transmission to the differential and wheels.
What are the Parts of A Drive Shaft?
When someone asks me about the parts of a drive shaft, I like to explain it step by step, almost like telling the story of how power travels from the engine to the wheels. The drive shaft is not just one solid tube—it’s a collection of parts, each with its place and purpose. Here is a detailed explanation:

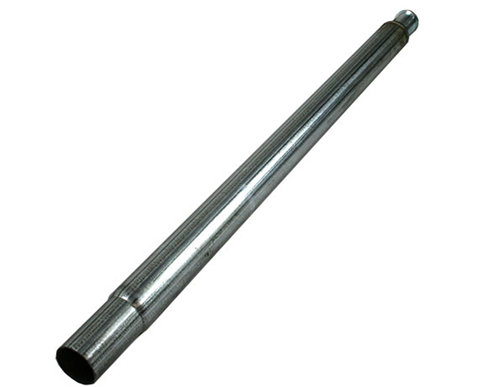

Drive Shaft Tube
At the heart of every drive shaft is the tube itself, the long cylinder that carries power from the transmission up front to the differential at the back. Most are made from seamless steel to handle heavy twisting forces, while performance or lightweight cars may use aluminum or carbon fiber instead.
The tube’s role is to pass torque smoothly without bending. It flexes slightly under load but always returns to shape. In smaller cars, it is usually one solid piece, while longer vehicles like trucks often rely on multiple connected tubes with supports.

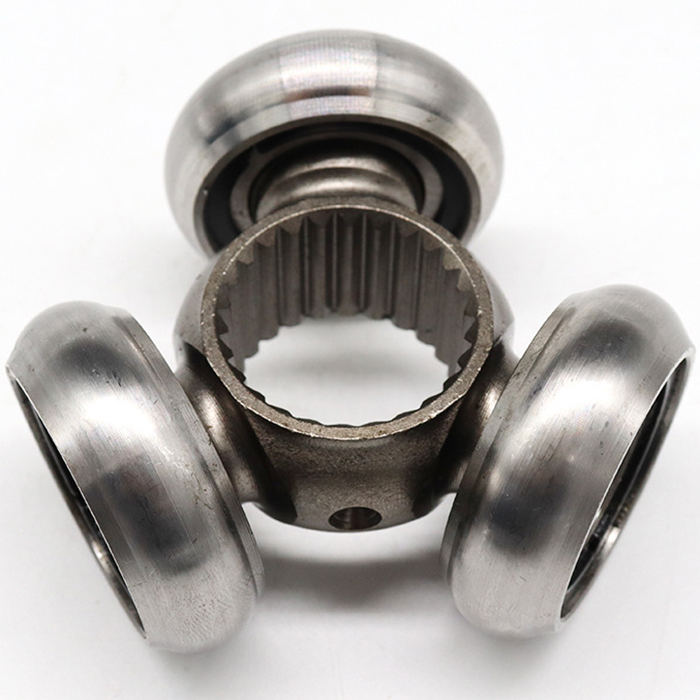

Universal Joints
At both ends of the tube, you’ll usually find U-joints. These little cross-shaped joints are like the “elbows” of the system. Why do we need them? Because the engine and the wheels never sit perfectly in line. The suspension is always moving, the axle bounces, the angles shift—and without flexible joints, the shaft would snap.
There are different kinds of U-joints, too:
- The basic cross and bearing type is the most common, found on most everyday vehicles.
- In trucks and off-road vehicles, you might see a double cardan joint—two U-joints paired together—for smoother rotation at steeper angles.

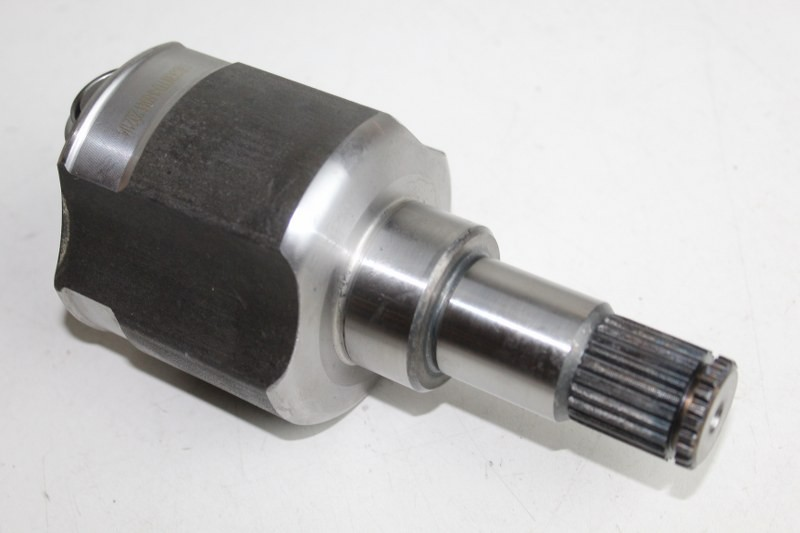

Inner CV Joint
The inner CV joint sits at the end of the drive shaft nearest the transmission or differential. Its main role is to let the shaft slide in and out slightly as the suspension moves. Think about when a car goes over a bump—the wheels and suspension travel up and down, and without some flexibility, the shaft would be forced to bend or break.
Most inner CV joints use what’s called a tripod design. Inside, three rollers move back and forth in matching tracks. This setup allows smooth sliding movement while still transmitting torque. The tripod design is strong and compact, which makes it ideal for front-wheel-drive cars and many modern all-wheel-drive systems.

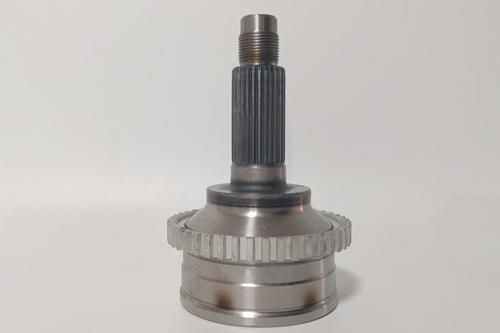

Outer CV Joint
The outer CV joint is the one closest to the wheel hub. Its job is to handle the tricky task of sending power to the wheels while they’re turning left or right. That means it has to work smoothly even at sharp steering angles.
Most outer CV joints are of the Rzeppa type, which uses steel balls held in a cage that moves inside a spherical housing. This design makes it possible for the joint to maintain constant rotational speed without vibration, no matter how much the wheel is turned. It’s the reason front-wheel-drive cars can steer tightly while still getting steady power.
In everyday terms, if the inner joint gives the drive shaft its “in-and-out” flexibility, the outer joint gives it “side-to-side” freedom, which makes the whole system practical.
Dust Cover
The dust cover, more commonly called the CV boot, is a rubber sleeve that seals the CV joints. Its role may sound simple—keeping grease in and dirt out—but it’s one of the most important parts of the drive shaft assembly.
Inside the boot, thick grease coats the moving parts of the joint, reducing friction and heat. The boot itself is clamped tightly at both ends so nothing leaks. If the cover cracks, grease starts to escape, and dirt and water get in. Once that happens, the joint wears out quickly, often leading to clicking noises when turning.
That’s why mechanics always check CV boots during service. A small tear, if caught early, can be fixed before the joint itself gets damaged. Replacing a boot is much cheaper than replacing the whole drive shaft.
What is Connected to the Drive Shaft?
Customers often wonder how the drive shaft fits into the bigger drivetrain picture. In short:
- Transmission – This is where the drive shaft receives torque.
- Differential – The shaft delivers torque into the differential, which splits it between the wheels.
- Wheels – Finally, the power reaches the wheels, moving the vehicle forward or backward.
Rear-wheel-drive cars use a single shaft linking the transmission to the rear differential, while front-wheel-drive cars rely on shorter CV shafts that connect directly to the front wheels, and if your vehicle is an all-wheel drive (AWD) or four-wheel drive (4WD) vehicle, power flows through multiple drive shafts to the front and rear axles.
Explaining this connection to customers highlights why the drive shaft is a critical link—if it fails, the vehicle doesn’t move.
Summary
When you understand the parts of a drive shaft, where they sit, how they’re built, and what they do, it becomes much easier to explain things to your customers. Showing them how the shaft links the transmission, differential, and wheels gives them a clear picture of what’s happening. And in this line of work, it’s that clear knowledge that makes people trust you.
