If you work in the drive shaft business, you’ve probably heard this question from customers more times than you can count: “Where is the drive shaft located?” At first glance, it seems simple. However, the truth is that the answer varies depending on the type of vehicle.
As professionals, our job isn’t just to say “it’s under the car.” We need to explain clearly—because the more a customer understands, the more they trust us. In this article, I’ll walk you through the general location of a drive shaft, how its position changes with different drivetrains, how to spot it in real life, and why it’s designed that way.
The drive shaft is generally located underneath the vehicle, running between the transmission (or transfer case) and the differential, transferring engine torque to the drive wheels. Its exact position depends on the type of drivetrain: front-wheel drive, rear-wheel drive, or all-wheel drive.
Where is the Drive Shaft Located in General?
Let’s start broadly. No matter the car type, the drive shaft’s job is always the same: to deliver power from the engine and transmission to the wheels.
To do that, it has to sit in a very specific place—under the car, between the gearbox (or transfer case) and the axle it drives. Imagine it as a messenger running beneath the car, carrying torque from the front to the back or side to side.
Most commonly, you’ll see it as a long metal tube that runs lengthwise down the center of the car. But not every car looks the same underneath. That’s why understanding the drivetrain layout is key.

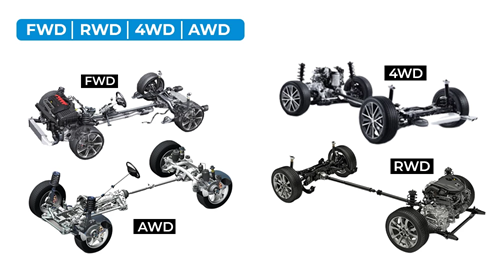

Where is the Drive Shaft Located in Different Drivetrains?
This is where things get interesting. Customers don’t just want “under the car”—they want to know exactly where, depending on what they drive.
Front-Wheel Drive (FWD)
In a front-wheel-drive vehicle, the drive shaft doesn’t look like the traditional long tube. Instead, you’ll find two short shafts, called half-shafts, coming out of the transaxle (a combined transmission and differential) at the front of the car.
- Location: Just behind the front wheels, connecting the transaxle to the wheel hubs.
- Appearance: Thick, sturdy rods with protective rubber CV boots.
- Customer tip: If they look behind the front tires, they’ll see them almost immediately.
This is where confusion comes in: customers often ask if the drive shaft and axle are the same thing. The truth is, in front-wheel-drive cars, the half-shaft technically is a type of drive shaft—but most people simply call it an axle.

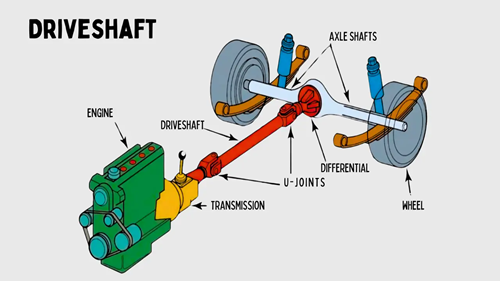

Rear-Wheel Drive (RWD)
Ask a customer to picture a “drive shaft,” and they’re usually thinking of a rear-wheel-drive setup. Here, the drive shaft takes its classic form: a long, spinning tube running down the car’s belly.
- Location: Straight down the middle of the vehicle, linking the transmission at the front with the differential at the rear.
- Appearance: A cylindrical shaft, sometimes with a center support bearing if the car has a long wheelbase.
- Customer tip: Tell them to crouch down and peek under the car. If they see a long pipe running to the rear axle, that’s the drive shaft.
This setup is common in trucks, SUVs, and performance cars. It’s also why when people say “rear drive shaft location,” they usually mean “right under the floor, running lengthwise.”

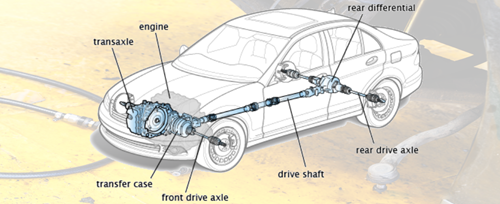

Four-Wheel Drive (4WD) and All-Wheel Drive (AWD)
Now it gets a little more complex. In four-wheel-drive or all-wheel-drive vehicles, there’s not just one drive shaft—there are usually two.
- Location: One shaft runs from the transfer case (a gearbox behind the transmission) to the rear differential. Another runs from the transfer case to the front differential.
- Appearance: Two separate shafts, one heading backward, one heading forward.
- Customer tip: If they slide under the vehicle, they’ll spot two metal tubes pointing in opposite directions.
This design allows power to be split between front and rear wheels, which is why SUVs and off-roaders often have both front and rear drive shafts.

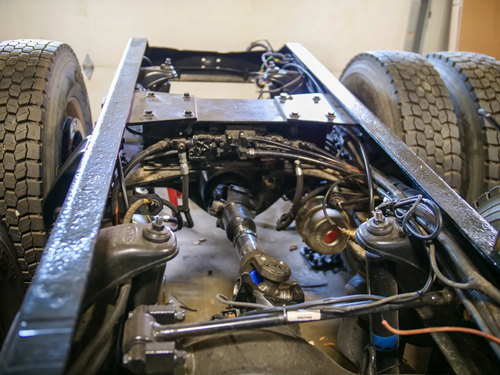

Heavy-Duty and Commercial Vehicles
For trucks, buses, and other heavy-duty machines, drive shafts get even longer and more complicated.
- Location: Multiple shafts run in sections along the vehicle’s frame, joined together with support bearings.
- Reason: One single shaft would be too long and unstable, so engineers break it up into smaller pieces.
Customers in this industry usually appreciate a professional explaining not just where the shaft is, but why it’s designed in multiple segments.
How to Find the Drive Shaft in Your Vehicle
Knowing theory is one thing—showing customers how to see it with their own eyes is even better. Here’s a simple guide you can share:
- Park safely: Turn the engine off, apply the handbrake, and make sure the vehicle is on flat ground.
- Look underneath: From the side, crouch down and look under the car’s middle. In rear-wheel and four-wheel drive vehicles, a long tube is hard to miss.
- Check near the front wheels: For front-wheel-drive cars, the drive shaft is much shorter and sits near the front tires.
- Identify the joints: Spot the rubber boots (CV joints) in FWD cars or U-joints in RWD cars—that’s a clear giveaway.
- Follow the line: Trace the shaft from transmission to differential to really understand its path.
This makes you not just a seller of parts, but a guide who helps customers understand their vehicle.
Why the Drive Shaft is Designed This Way
At this point, some curious customers may ask: “Why here? Why not somewhere else?” That’s your chance to give them a professional, memorable answer.
- Direct torque transfer: The shortest path between transmission and wheels means less energy loss.
- Balance and stability: A central, low placement helps maintain vehicle stability.
- Space efficiency: Mounting it underneath keeps the cabin and cargo area free.
- Maintenance access: Easier for mechanics to inspect, grease, or replace.
- Durability: Being under the chassis protects it from direct impact while still allowing airflow to cool it.
Conclusion
So, where is the drive shaft located? It depends—but now you know how to explain it like a pro.
- In general, it’s under the car, between the transmission and differential.
- In front-wheel drive, it’s near the front wheels.
- In rear-wheel drive, it’s a long tube down the center.
- In four-wheel drive, there are usually two shafts.
When you explain this with confidence, customers see you not just as a seller, but as a trusted expert. And that’s the difference between ordinary service and truly professional service.
